Hello everyone I’ve decided to kick the cobwebs off my blog and write something for the first time in… too long, but hey I’ve been pretty busy with life we all get that way sometimes I suppose; but this isn’t a recipe for your granny’s best tomato soup so lets get into it.

Motivation

This blog series is intended for me to cement my iOS testing knowledge as well as put out some (hopefully) interesting content that isn’t behind a damn medium paywall.

Step Zero, BACKUP

Before we go any further, backup backup BACKUP, you’ll want to be able to restore the device if anything goes wrong… which it won’t ofc but just to make sure.

Step One, iPhone

For my testing device I’ve gone with the iPhone 8+ (iOS 16.7.11) as it was what I had laying around after I upgraded, and handily, it can still be jailbroken using the palera1n method unfortunately though I can’t use trollstore to install the app. I can; however, use Sideloadly it’s a simple process, connect the device up to your device - I’m using mac here but i’ve used windows too - drag the IPA over the the IPA box and then click start you’ll it will ask you to log in and then drop the app on the device:

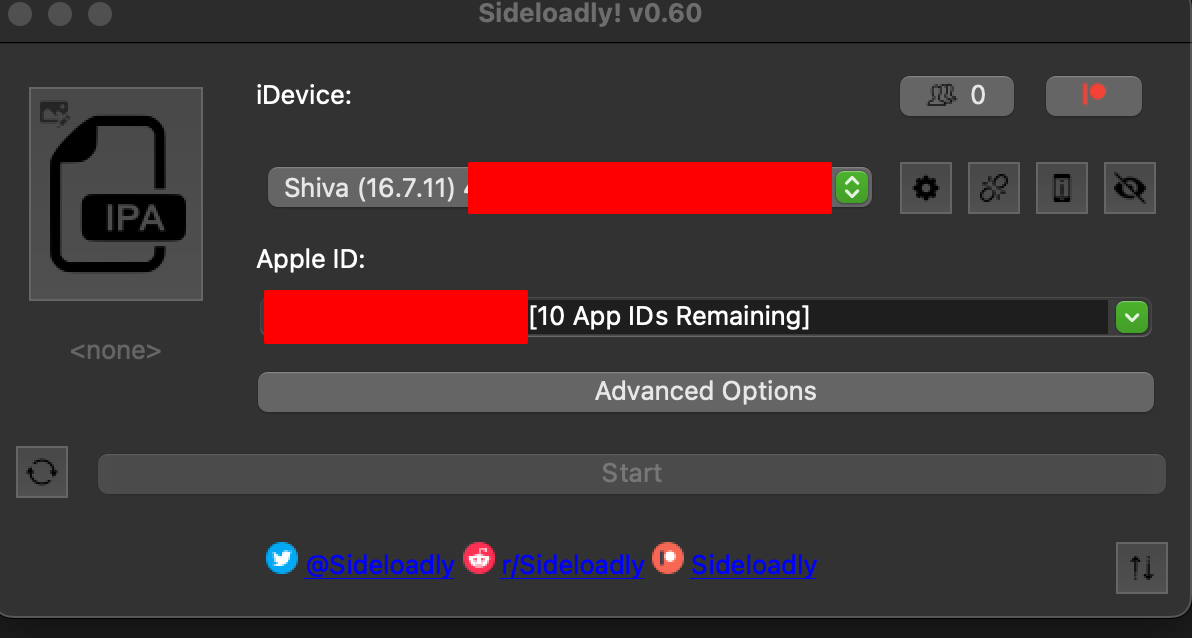

Sideloadly Screenshot showing upload of an IPA

iGoat-Swift

OWASP have a nice handy vulnerable iOS application iGoat-Swift we’re going to use for this series. Using Sideloadly, we push the iGoat app to the the device. Next we need to push the frida-server binary up to device too.

Note: You’ll need to jailbreak your device in order to properly run the frida server. Additional note: There’s currently an issue running Objection with the latest version of frida - I’ve found version 15.6.2 works well the following script should get you started

#!/bin/bash

export IPHONE_IP="192.168.0.101"
## create mobile testing Venv
python3 -m venv ~/.mobile_testing_venv
source ~/.mobile_testing_venv/bin/activate
pip3 install frida-tools==13.7.1 frida==16.7.19 objection
wget https://github.com/frida/frida/releases/download/16.5.2/frida_16.5.2_iphoneos-arm64.deb # grab 64-bit frida-server for iPhone

wget https://github.com/frida/frida/releases/download/16.5.2/frida_16.5.2_iphoneos-arm.deb   # 32-bit frida-server for iPhone

# push the frida_servers to the home directory of the "mobile" user which is the default for jailbroken iphones

scp frida_16.5.2_iphoneos-arm64.deb "mobile"@$IPHONE_IP:~/frida_server64.deb
scp frida_16.5.2_iphoneos-arm.deb "mobile"@$IPHONE_IP:~/frida_server.deb

echo "connecting to iPhone at ${IPHONE_IP}"
ssh mobile@$IPHONE_IP -L 27042:localhost:27042 ## ssh into the phone forwarding frida port

## issue these commands in the ssh session
# sudo su
# dpkg -i frida_server64.deb ## frida_server.deb for 32bit

Once this script has run it should have downloaded the relevant frida-server and pushed it up to the device. Next we check that we can connect to the frida-server using the following command: frida-ps -Rai | grep -i "goat"

This will list all running processes on the device (the -R flag is for remote host) and grep the results for anything with the word goat in:

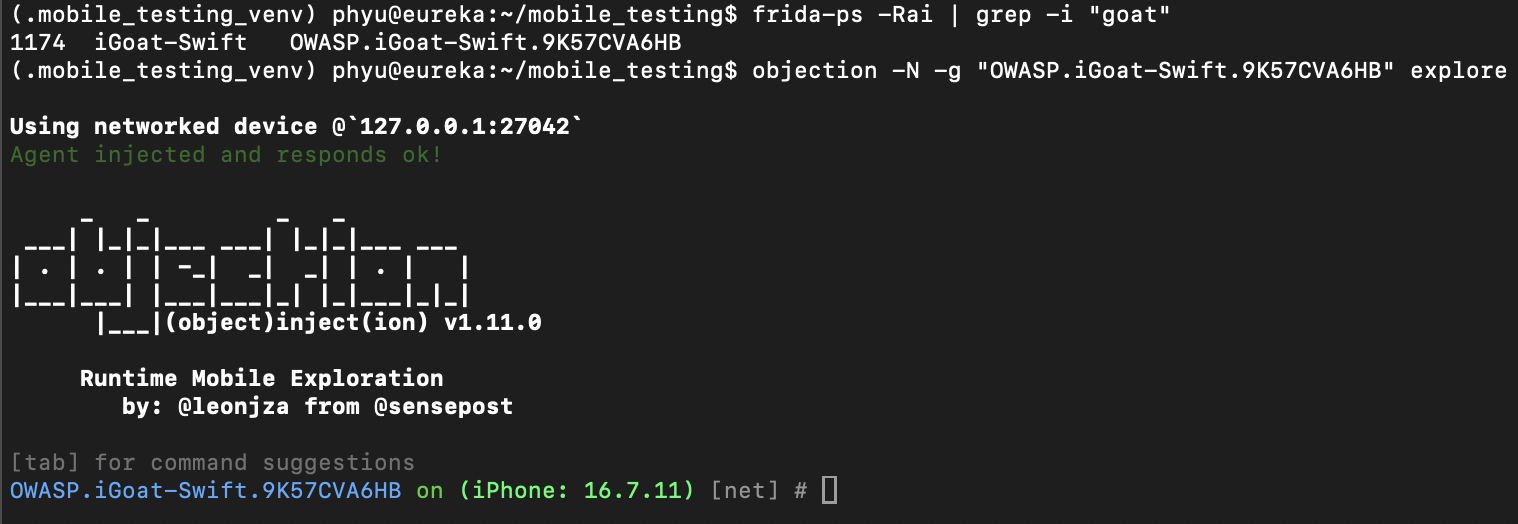

Frida-ps showing the goat process

Now we know the gadget we can launch objection with the explore option:

Frida gadget running with the explore option

Finally to round it off here, issue the env command in the REPL to display application environment information such as where the app is on the device and and folders used to store data:

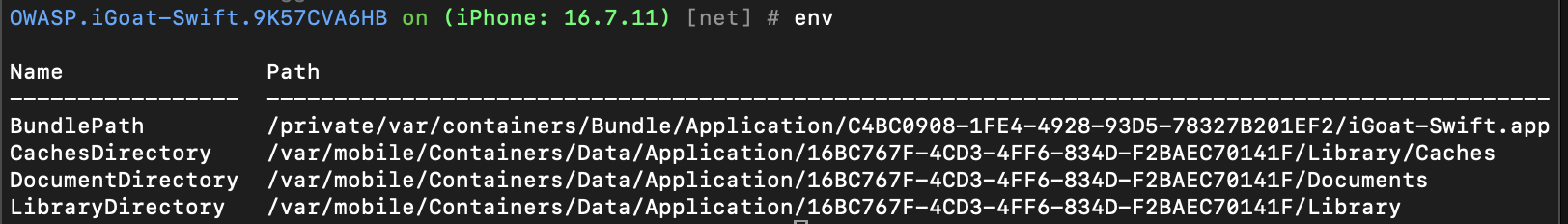

Frida gadget showing the environment the app is running in

Hopefully, This was useful

Phyu
